Electronics Lab Kits

Needed if you're doing labs at home or in your dorm room
Also useful in EE 206, ECE 311, 320, 321, 376, 401, 403, 405

$17 Powered Breadboard

Student-Provided
​Search "Powered Breadboard" on Amazon.  Provides breadboard, push buttons, wires, capacitors, transistors, LEDs, etc.

$11: 1/4 Watt Resistors

.  Student Provided

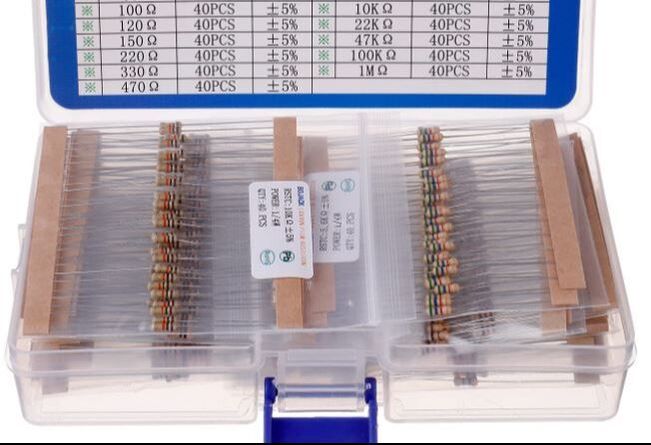

​The resistors in the breadboard kit are almost unreadable.  Get a bunch of tan 1/4W resistors.

DC Power Supply ($14)

Student Provided

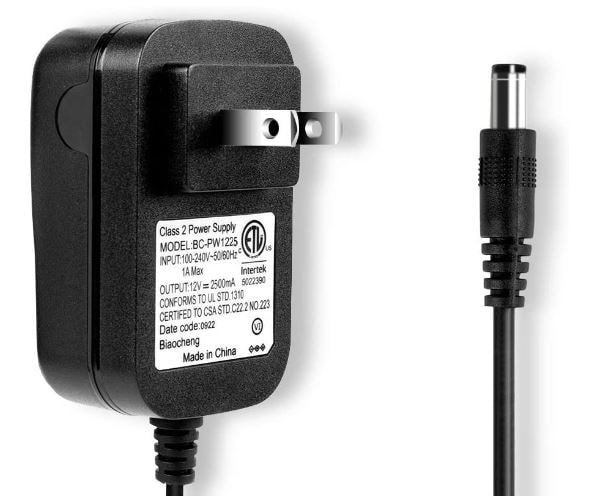

Free if you can find one in the junk drawer at home.  Any voltage from 6V to 16V, capable of 200mA or more works with the powered breadboard.  You can also use a 9V battery if you can't find one.

---

Other Stuff You'll Need

• Digital Multimeter
• Oscilloscope (optional)
• Matlab (free to NDSU students)
• CircuitLab (free to NDSU students)

Cell-Phone Apps (free)

• PanoTuner
• Oscilloscope
• Function Generator
• Spectroid

Digital Electronics

• 555 timer (x2)
• MCP602 Op-Amp (x2, for 0V/5V operation)
• 6144 NPN power transistor  (x1)
• 3W speaker (x1)
• 9V battery cord (x1)
• 20 Ohm resistor (for limiting current to speaker)

Free!  Pick up outside of ECE room 201

 Analog Electronics

• 9V battery clips (x2, for +/- 9V power)
• LM833 op-amps (x2, for +/-9V operation)
• TIP117 PNP power transistor (x1)

Free! Pick up outside of ECE room 201
